Details

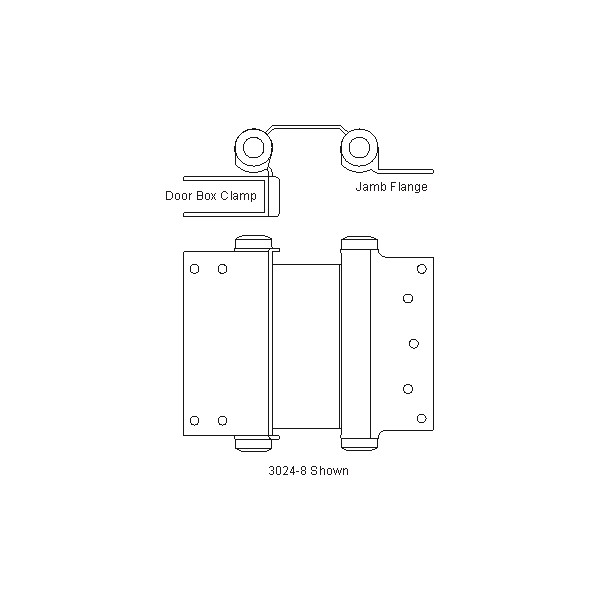

•Box clamp door flange is attached to door using thru bolts and nuts
•Jamb flange is surface applied to jamb
•Steel material
•Non-template
•Non-handed
•Clamp flanges are not adjustable, door thickness must be included on order
•Packed with thru bolts and machine screws
|
- Door Thickness: 1-3/4"
- Minimum Door Height: 7'0"
- Maximum Door Weight
- With 2 Hinges: 103
- With 3 Hinges: 143
- Maximum Door Width
- With 2 Hinges: 3'6"
- With 3 Hinges: 4'0"
|
