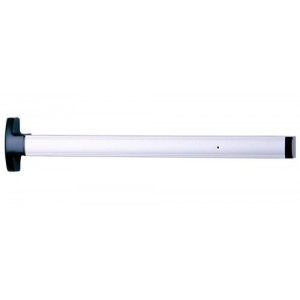

Rim Exit Device

Rim Exit Device

Rim exit device For 3 FT. Aluminum door. UL listed, ANSI Grade 1.

Solid metal end caps, Compact design, Anodized aluminum finish.

FC3792-36 CL

3700 Rim Exit Device

DevicePackaging powerful security into a compact size, the 3700 can be mounted on doors with stiles as narrow as 2” and includes a 1” forged steel latch bolt. Non-handed and available for doors up to 4 feet, the 3700 is a convenient solution for demanding, busy traffic conditions. These durable devices are ANSI Grade I (500,000 cycles) and UL Listed. Striking anodized finishes are accented with high performance coatings on solid metal end clips.



Spec Info

The 3700 narrow stile rim exit device utilizes a low profile touch bar projecting less than three inches (3”) from the face of the door.  The device uses a 1” hardened steel latch bolt engaging a frame mounted stainless steel roller strike. It is active the full length between door stiles and mounts to the door using metal covers and end caps and requires no more than 2” width of door stile.The 3700 push bar and base are 6063, T-6 hardened aluminum in anodized finishes. It is capable of operation by external key cylinder with Night Latch or Hold Back settings. Single point, quarter turn dogging is standard.


Options

Rim Cylinder Kit, For Outside

Access, Nightlatch or Hold Back

Interior Cylinder Dogging

Alarm Kit, 9V Battery Powered

Lever Trim, Mechanical

Or Electric 24VDC Operation

Security Mullions, For Pairs of Doors
