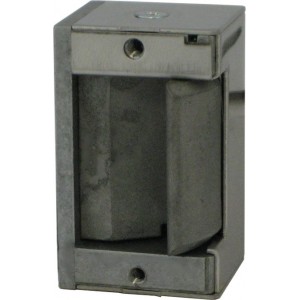

Compact Electric Strike 12V

Compact Electric Strike 12V

3000 series, 1" backset, 12VDC.

TR3012

3000 series, only 1” total backset



• GRADE 1

• 500,000 + life cycles

• 1,500 + lbs. holding force (1,200 lbs. for 334, 3234W)

• Dynamic Force 70 ft/lb.

• Solid stainless steel latch and locking mechanism

• Accepts a bolt with a up to 5/8” throw

• Non-handed (except 458, 478 LO/RO)

• Fail secure - standard action (unlocks with power)

• Fail safe - “RS” (locks with power)

• Mechanism spacers increase cavity depth up to 1/8”


Standards

• BHMA - A156.31, 2001

• BHMA Grade 1 - All models (except 334 and 3234W)

• BHMA Grade 2 - 334 and 3234W

Accepts up to a 5/8” throw with faceplate with a 1/8” gap.
