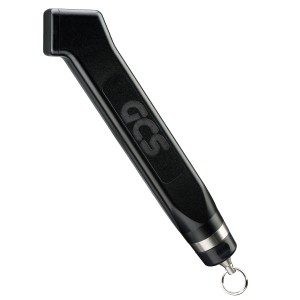

Proxipen Only

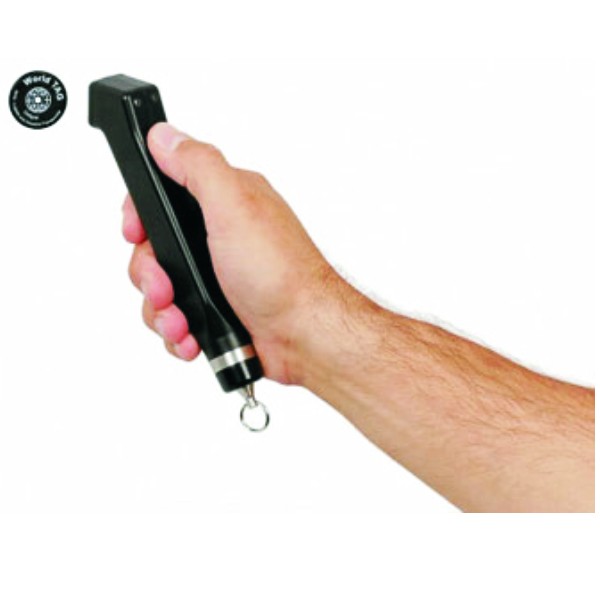

ProxiPen RFID Tag Reader


Compact Reader for RFID Tags

In today's rapidly-changing information society, large corporations and small companies alike increasingly require modern data collection and auto-ID systems. The ProxiPen reads radio frequency identification (RFID) tags and other transponders automatically, and can fully satisfy the data collection needs of both commercial and industrial applications.



• Compact, lightweight, simple to operate

• Tough waterproof polycarbonate housing

• Resists heat, shock and hydro-carbons

• Powered by one "AA" commercial alkaline, lithium or rechargeable battery

• Reads RFID proximity tags

• Provides visible and audible indications to confirm information has been read



• ProxiPen can read RFID tags even if they are wet, frosty, dirty, greasy, or painted over

• RFID tags can be concealed behind wallpaper, wallboard, plaster, paneling, mirrors or any other nonmetallic surface - a real plus in applications where aesthetics or vandalism are considerations

• ProxiPen "autosenses" and reads

RFID tags whenever they come into its reading range

• Low power consumption – requires one "AA" commercial alkaline, lithium or rechargeable battery that can be replaced by user without any special tools readings) - can be used for long periods in the field without the need for frequent downloading

• Easy to use; no external controls

Technical Information

• Weight: 4.94 oz. (140g)

• Operating Temperature Range: -4°F to +158°F (-20°C to +70°C)

• Mechanical Shock Resistance: Free fall from 5 ft. (1.5m) on concrete

• TAG Frequency: 125 kHz

• Reading Distance: 0.12" to 0.71" (3-18mm) depending on size of transponder and condition of battery. Reads through nonmetallic materials.

• Approved Tags: Sokymat World


• Memory Capacity: 4,063 readings

• Time Resolution: 1 minute

• Download Time: Approx. 1 minute (full memory)

• Housing: Polycarbonate

• Power Supply: One "AA" cell, 1.5v

• Approx. 50,000 Readings/Battery
