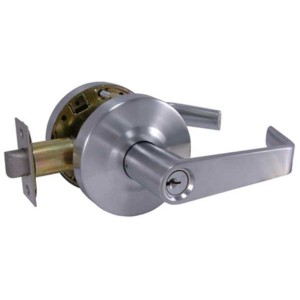

Storeroom Cylinder Lever Lock

Storeroom Cylinder Lever Lock

Storeroom cylinder lever lock, ANSI grade 2


Deadlocking latchbolt operated by key in outside lever or rotating inside lever. Outside lever is always locked.



Meets & Exceeds ANSI A156.2., Series 4000, Grade 2

UL Listed for A-Label, 3 Hour Fire Doors

Non-Handed - Completely reversible

Meets ADA and ANSI A117.1 accessibility requirements

2 3/4" backset latch with 1 1/8" x 2 1/4" latchface (standard)

Stainless steel latchbolt with 1/2" projection

Steel, Zinc dichromated chassis for corrosion resistance

ANSI A115.2 - Thru-bolted installation

4 3/4" Pressure cast zinc levers

3 3/8" Wrought brass rose

4 7/8" x 1 1/4" ASA Strike (standard)

6 pin solid brass cylinder, C keyway with 2 silver nickel keys

Cylinder plug matches lock finish on standard cylinder

Small Format IC Core prepared locks also available less core (US26D only)

Tested to over 2 million cycles


US26D, US10B, US3 PVD, US26 PVD, US15, US4 available, other finishes available by special order
