Electric Strike

Electric Strike

The One Box Solution for cylindrical and mortise locks.

TR4100-32D

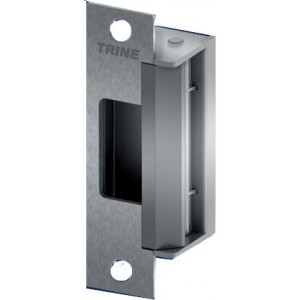

 Trine Access Technology presents the 4100 electric strike. It contains the 4 most popular faceplate configurations, multiple voltages, a low profile backset, and a trim skirt to allow for maximum flexibility. The fire rated 4100 will make installing and specifying difficulties a thing of the past.



Details:

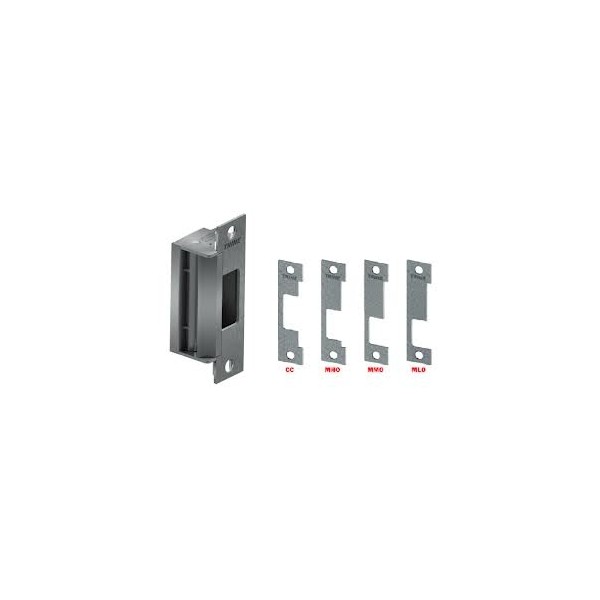

Comes with 4 Faceplates

Premium Stainless Steel trim skirt

Standard and Torx screws

Latch shims

Plug-in style wire connectors

Sealed crimp connectors

1-3/8” Shallow backset allows the 4100 to be used in 2” fire rated frames with ½” sheetrock ingress.

1034 Burglary rating (January 2013)

Exceeds 3250 lbs. of holding force

Exceeds 1,000,000 life cycles

ANSI/BHMA A 156.31, Grade 1


32D stainless steel (630)
