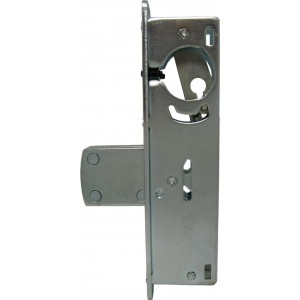

The Deadlock is operated by a pivot mechanism that activates the laminated  steel bolt with a throw of 1-3/8". This makes it very strong and sturdy providing maximum security. This deadlock is made for single leaf doors and or doors that have a gap between the door and the jamb.

 Operation:
 • One complete turn of key or thumbturn operates the deadbolt
 • Key cannot be removed unless bolt is in fully locked or unlocked position

Features

Bolt:
• 5/8" x 1-3/8" x 2-7/8" x 1-3/8" throw
• Five ply laminated steel

Backset:
• 1 1/8" or 31/32" available
• Case is zinc plated for corrosion resistance
• Complete with machine screws for mounting in aluminum stile doors
