Keypad-Prox Reader 2 pc

Keypad-Prox Reader 2 pc

Keypad Prox Reader 2pc

SD921P

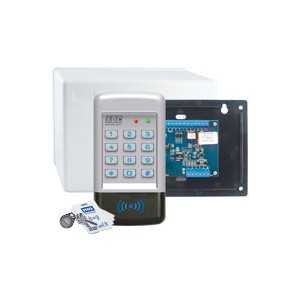

SD-921P Digital Keypad, 500 Users, 12/24 VAC/DC with Prox Reader and Controller



The 921PEntryCheck™ stand-alone digital keypad with Prox Reader

and Controller (2-piece configuration) are designed to control access of a single entry

point with up to 500 users. Each user is assigned a personal identification number

(PIN). Keypad entry of a valid one to six digit code activates one or both of the output

relays which releases an electric door lock. Heavy Cast Vandal Resistant Housing.

Heavy Cast Metal Blue Backlit Keys.


Voltage 12/24 VAC/DC

Current 60mA typical, 150mA maximum

Outputs Relay 1 - SPDT 5 Amps @ 30VDC

Relay 2 - SPDT 2 Amps @ 30VDC

Switch to Common Outputs 3 and 4 – 100mA @ 30VDC

Operating Temperature -20°F to + 130°F (-30°C to + 54°C)

Operating Humidity 5% to 95% non-condensing

Housing 921P: 3"W x 5-3/4"H x 1-7/16"D

924P: 1-3/4"W x 7-5/16"H x 1-3/8"D
