Narrow indoor/outdoor standalone keypad with prox reader

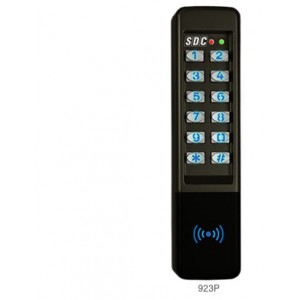

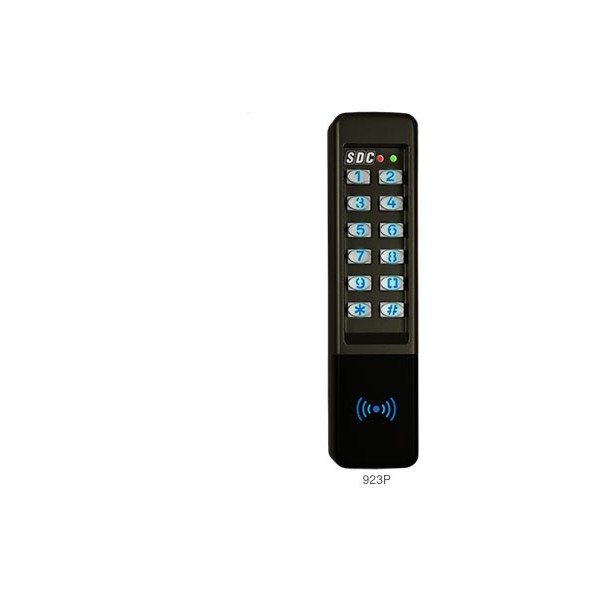

923P Digital Keypad, 500 Users, 12/24 VAC/DC with Prox Reader



The SDC EntryCheck™ 923 series narrow indoor/outdoor stand-alone digital keypads are designed to control access of a single entry point for facilities with up to 500 users. Each user is assigned a personal identification number (PIN). Keypad entry of a valid one to six digit code activates one or both of the output relays which releases an electric door lock.

The SDC EntryCheck™ 923P adds HID proximity reader capability to the keypad. The 923PW is designed to interface with most access control systems and provides a standard 26-bit Wiegand output

Narrow Digital Keypad with or without Wiegand Output for Universal Compatibility

• Weather and Vandal Resistant Housing with Tactile Metal Keys

• HID-Compatible Proximity Reader

(923P and 923PW only)

• 12-Key Illuminated, 2” x 6” Keypad

• Surface, Mullion, or Single-Gang Mount

• Built-In Tamper Switch

• Programmable Site Code (923PW)

• Dual LED Status Indicators

• Adjustable Audible Annunciation

• Configurable Illumination: On, Off, Timed



3 User Modes:

• PIN or Card

• Card Only

• Card and PIN

HID-Compatible: 125kHz-RFID
