Rim Electric Strike

12/24VDC, Stainless steel. For use with surface mounted rim exit device.

With up to 1" throw. Wood or metal frames.

TR4800-32D

SURFACE MOUNTING:
Unit only requires the drilling of (3) holes*

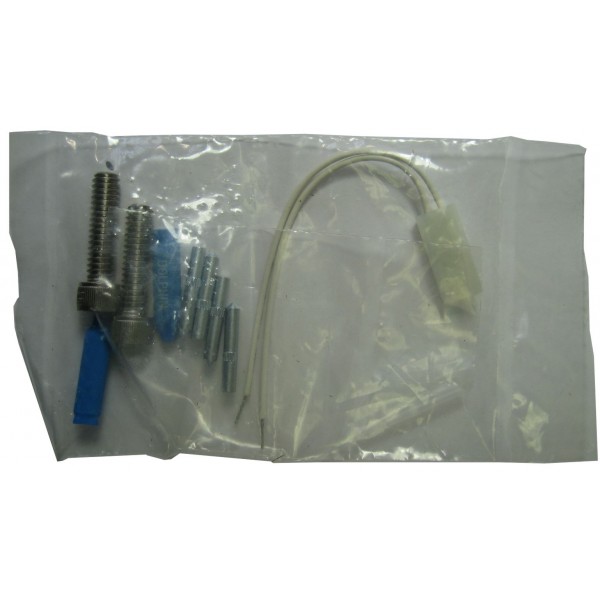

ANCHORING SYSTEM: (Included)
uniquely designed optional four pin anchoring system provides additional support beyond the standard two tapped mounting holes.



ONE PIECE LOCKING MECHANISM:
Our patent pending locking mechanism only has one mechanism providing incredible strength, durability and reliability due to fewer moving parts.

STAINLESS STEEL CONSTRUCTION

FAIL SECURE/FAIL SAFE FIELD SELECTABLE:

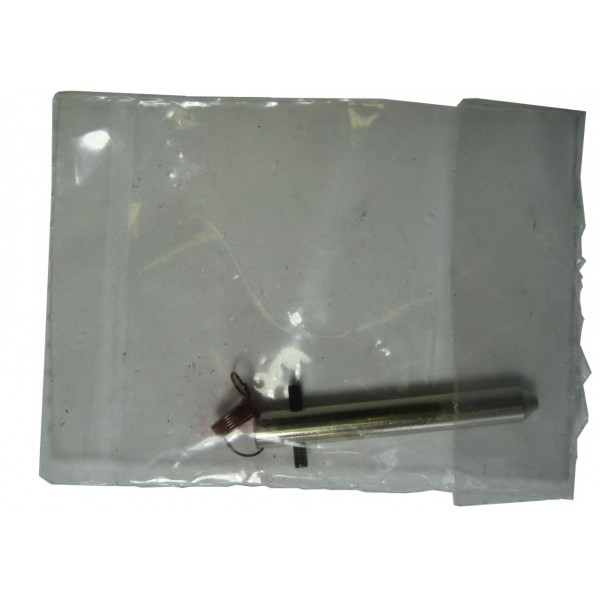

Unit is supplied with fail safe spring that is changed in the field when desired.

1,500,000+ LIFE CYCLE TESTED

3,000+ LBS. HOLDING FORCE

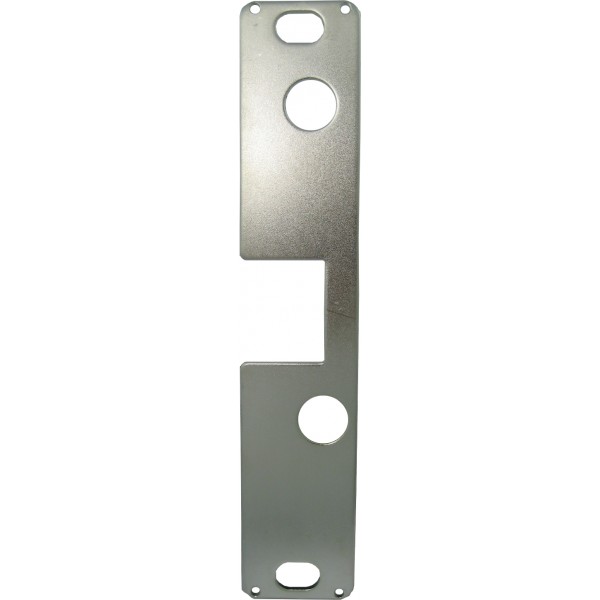

STEEL SPACER:
We supply a 1/8" thick spacer for those installations that require mounting the strike closer to the panic bar. In addition, the spacer is used as a template during installation.



12 THRU 24 AC/DC OPERATING VOLTAGE:
Expanding the use of our popular LC unit in the 3000 series, the 4800 has this unit built in providing the flexibility along with surge and kickback protection.
