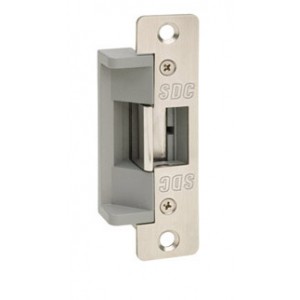

The SDC 15 Series electric strike is designed for use with cylindrical and mortise locksets. The 15 series electric strikes incorporates all stainless steel deadlocking mechanism and an internally mounted solenoid.

• For use with 5/8'' latchbolt, or up to 3/4'' latchbolt with 1/8'' door gap

• Choice of failsafe or failsecure

• Non-handed

• All stainless steel parts with durable die case body for corrosion resistance’

• 630 Satin stainless steel face plate

• ANSI A156.31 compliant

Specifications

Voltage : 240 mA @ 24VDC

200 mA @ 12VDC

Dimensions: 1-1/4'' W x 4-7/8'' H x 1-1/2'' D

(31.8W x 124H x 38.1D mm)
